Description

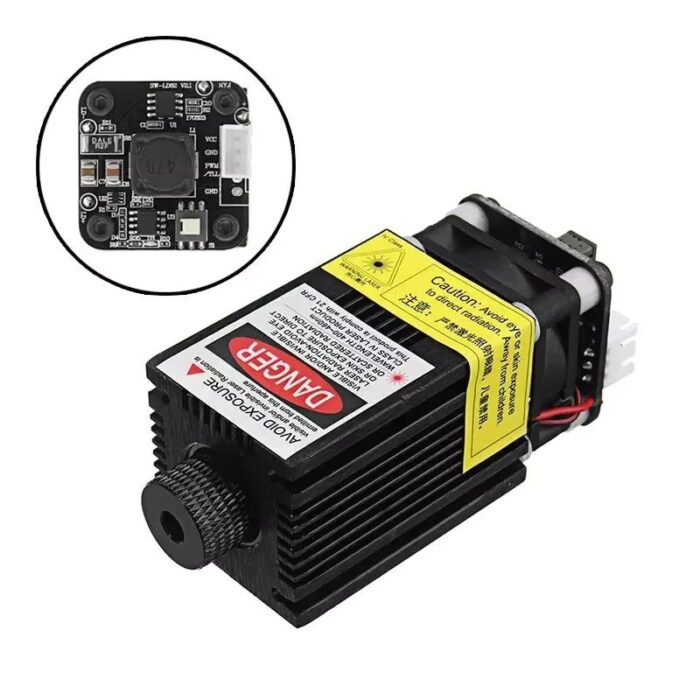

2500mW Blue Laser Module For DIY Laser Engraver 445nm – 12Vdc
Description:D-B2500 2500mW 445nm blue laser module, designed with longer heat sink shell which make sure a better heat dissipation performance is suitable for DIY laser engraver, and also other engraver that ensures XH2.54-3P interface and DC 12V input voltage.
Feature:
1. 445nm 2500mW focusable blue laser module, with TTL/PWM functions.
2. Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
3. Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
4. 3-pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
5. Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.
6. Can Not Engrave: Metal, Stone, Ceramics, Glass, Reflective or Transparent Material.
Specification:
| General Specification | |
| Model | D-B2500 |
| Heatsink Material | Aircraft Aluminum |
| Section Size | 30mm x 30mm |
| Cooling Mode | Heat Sink Groove, Cooling Fan |
| Dimension | 88 x 30 x 30mm |
| Input Voltage | DC 12V 2.5A |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/FoamPaper/ Anodized Aluminum |
| Can Not Engrave: | Glass/Stone/Ceramics/Stainless Steel/Reflective Material/Transparent Material/Metal |
| Technical Parameters | |
| Laser Power | 2500mW |
| Laser Wavelength | 445nm (Blue) |
| Beam Shape | Dot |
| Power Supply | DC?12V |
| TTL/PWM Modulation | YES |
| Input Interface | XH2.54-3P |
| Drive Mode | External ACC |
Features:
- 1. D-B2500 new series of laser modules, exquisite workmanship and nice appearance.
- 445nm 2500mW focusable blue laser module, with TTL&PWM functions.
- Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
- Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
- 3 pins plug, 2.54-3P input interface, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
- Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc. Can Not Engrave: Metal, Stone, Ceramics, Glass, Reflective or Transparent Material.
User must read:
1. Laser module power is relatively large, to prohibit eye exposure, otherwise it will cause permanent blindness, Consequences at your own risk.
2. Do not use in flammable and gas atmosphere to avoid fire and explosion.
3- Prevent children from being exposed to this product by laser
4. Do not open the unit to avoid damage.
5. Please wear laser goggles during usage, avoid to touch the laser directly to the eyes and skin! Keep away from children and pets6. avoid exposure visible and inviable laser radiation is emitted from this aperture
7. Usually used for EleksMaker® laser machine, 3 pins connector cable is needed to connect to the EleksMaker Board. This item will come with the cable, and the cable from your A3 machine is also suitable.
8. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
9. can’t be used for Carving on Metal/glass/stone/ceramics/jewelry/silver/reflective materials/ transparent materials.
10. Can be used for Carving on wood/bamboo/paper/plastic/leather/rubber/horn.
11. Can cut thin paper/light wood/sponge paper/felt/fabric/sticker.
Protective Lens Cleaning Method:
- Prepare cotton swab and lens cloth.
- Wrap one or two layers of lens cloth around the head of the swab and dip a small amount of water of cleaning agent in the head.
- Use the cotton swab head wrapped in the cleaning cloth to gently press the protective lens and wipe the area back and forth until the lens is clean.
warning:
visible and invisible radiation avoid eye or skin exposure to direct or indirect scattered radiation
laser safety:
Package Includes:
- 1 x 2500mW Blue Laser Module
