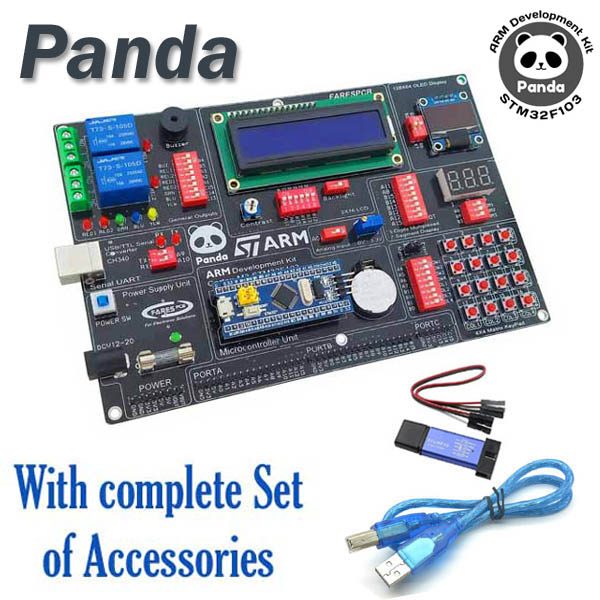

ARM (Panda) Development & Training System Based on STM32F103C8T6

Description

General Description

Panda kit is an ARM development kit based on Blue Pill module which supports 32-Bit ARM Cortex-M3 microprocessor STM32F103C8T6.

Panda Kit Features

1. Supports Cortex-M3 (STM32F103C8T6).
2. USB or adaptor powered.
3. 16 Input switches with two operating modes.
4. Output unit involves.
   • Five output LEDs
   • Two output relays with LED indicators
   • one output buzzer
5. 2X16 Character LCD with contrast and backlight control.
6. 128X64 I²C 0.96″ OLED display.
7. Three digits 7segment display.
8. Analog input.
9. USB/TTL serial converter CH340.
10. All GPIOs are brought out to pin headers.

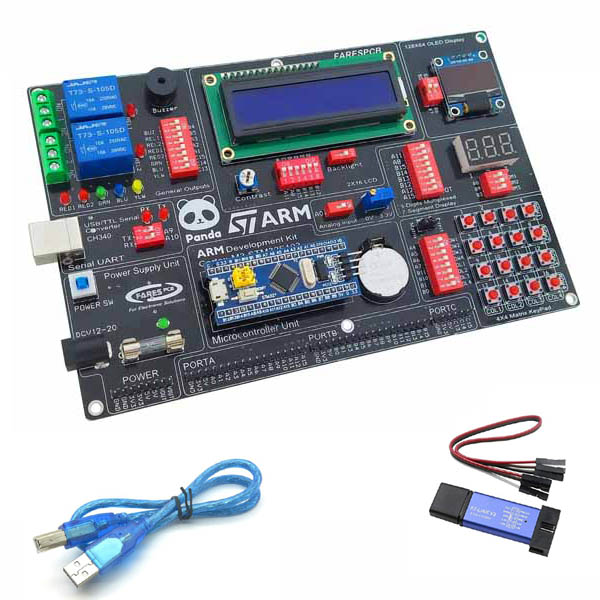

Package includes:

1. Panda Kit.
2. Blue Pill module (STM32F103C8T6).
3. ST-Link V2 Programmer
4. 0.96″ 128X64 OLED display.
5. USB cable A/B type.

Download

• User Manual (Click Here) & Software CD (Click Here)
